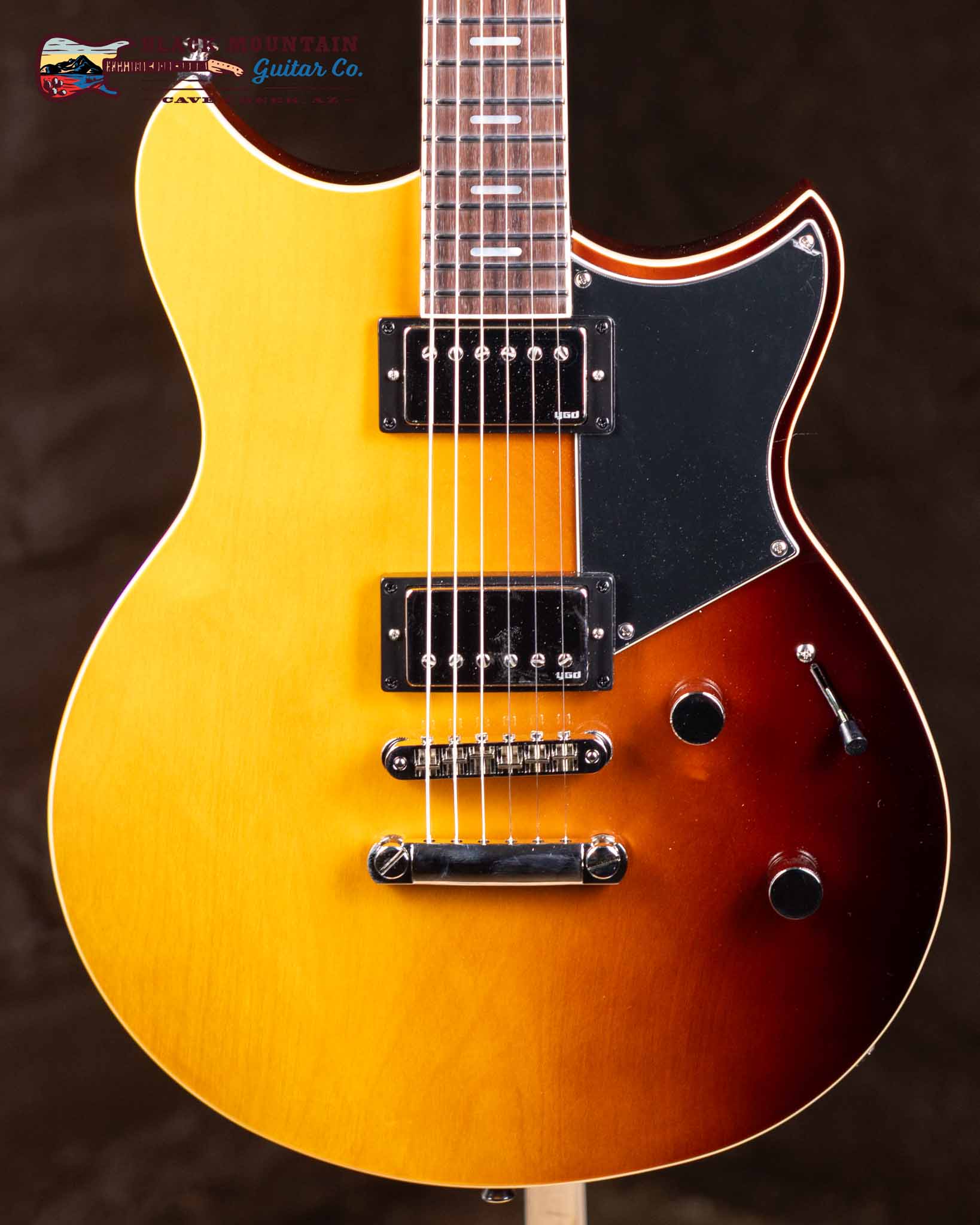

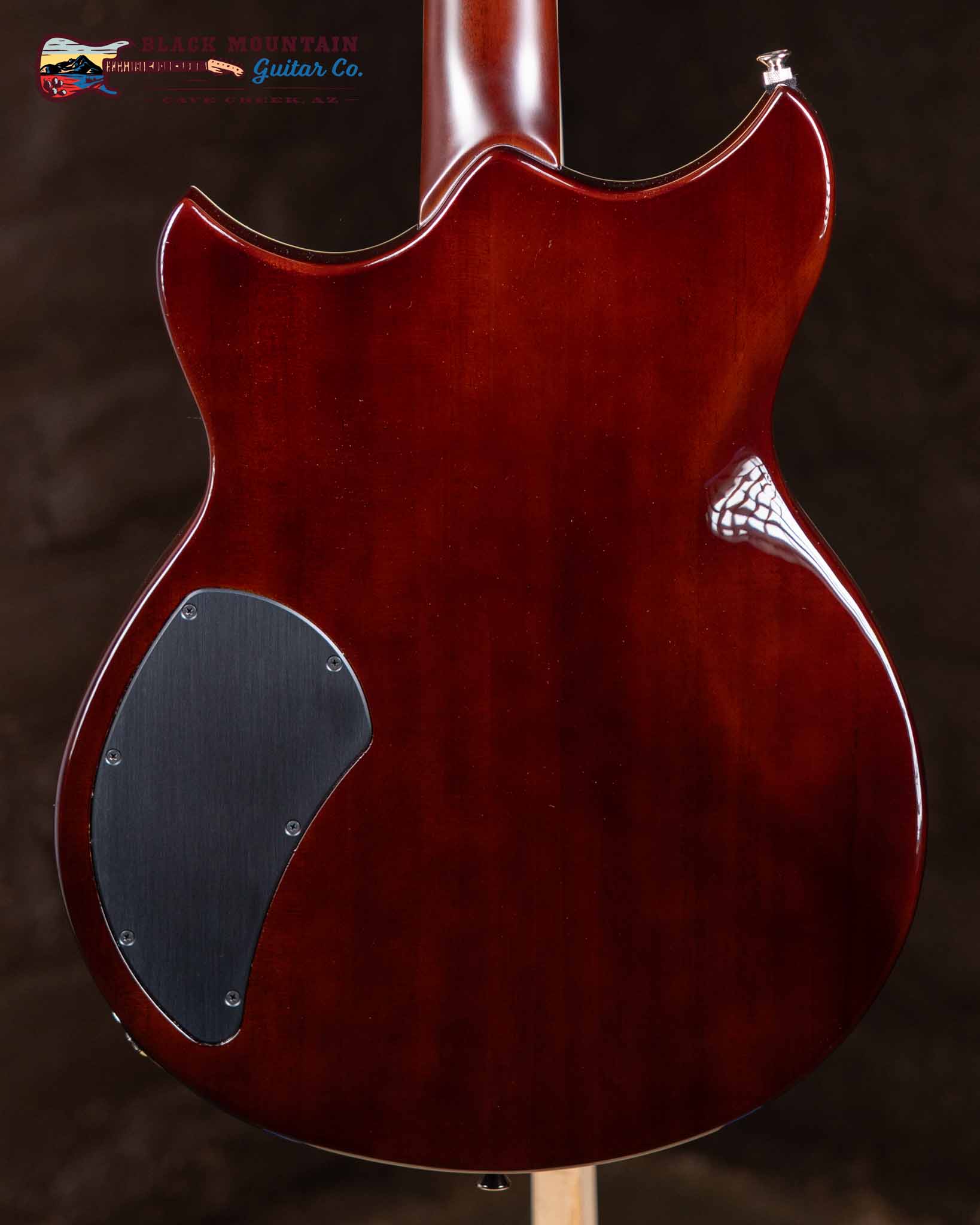

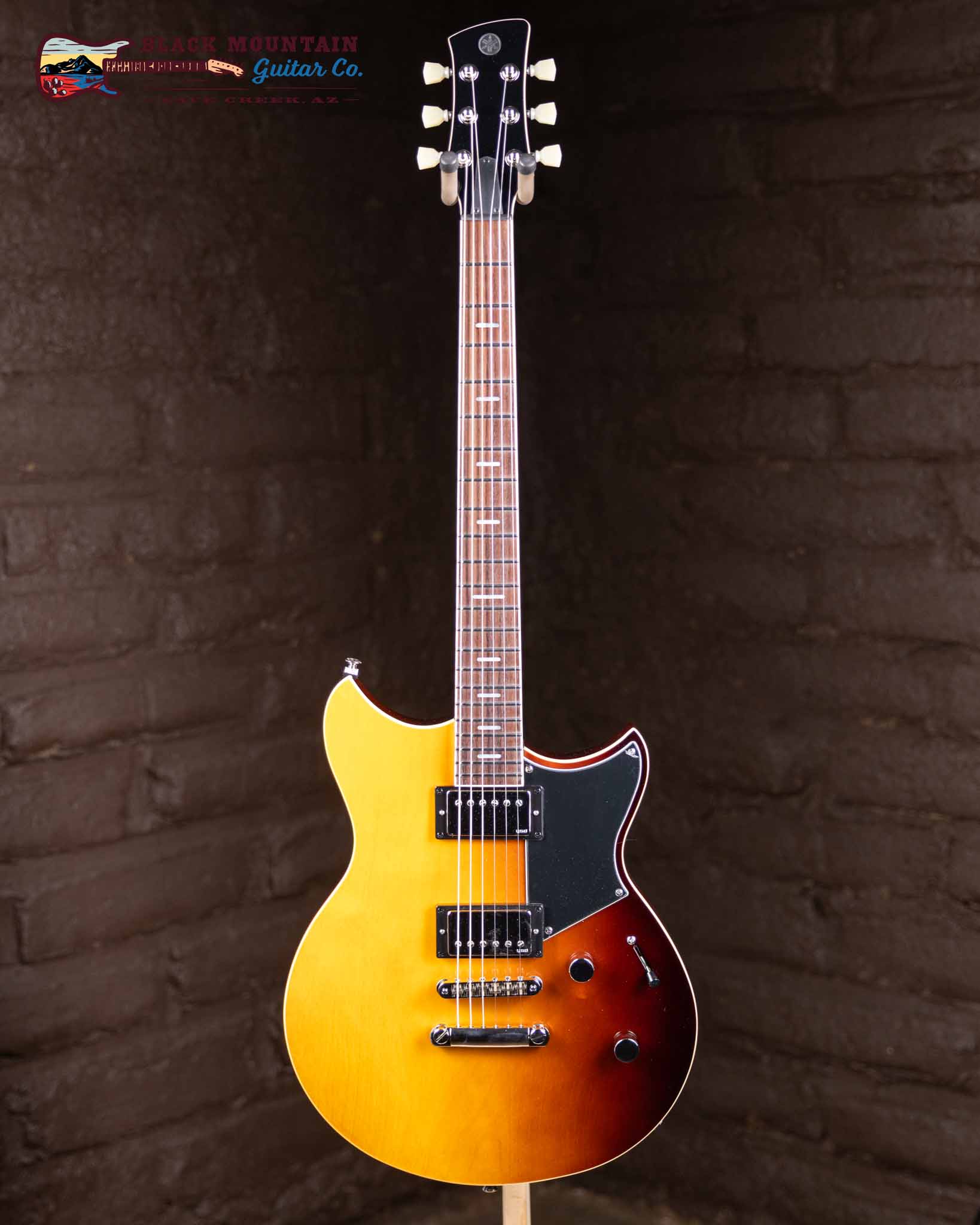

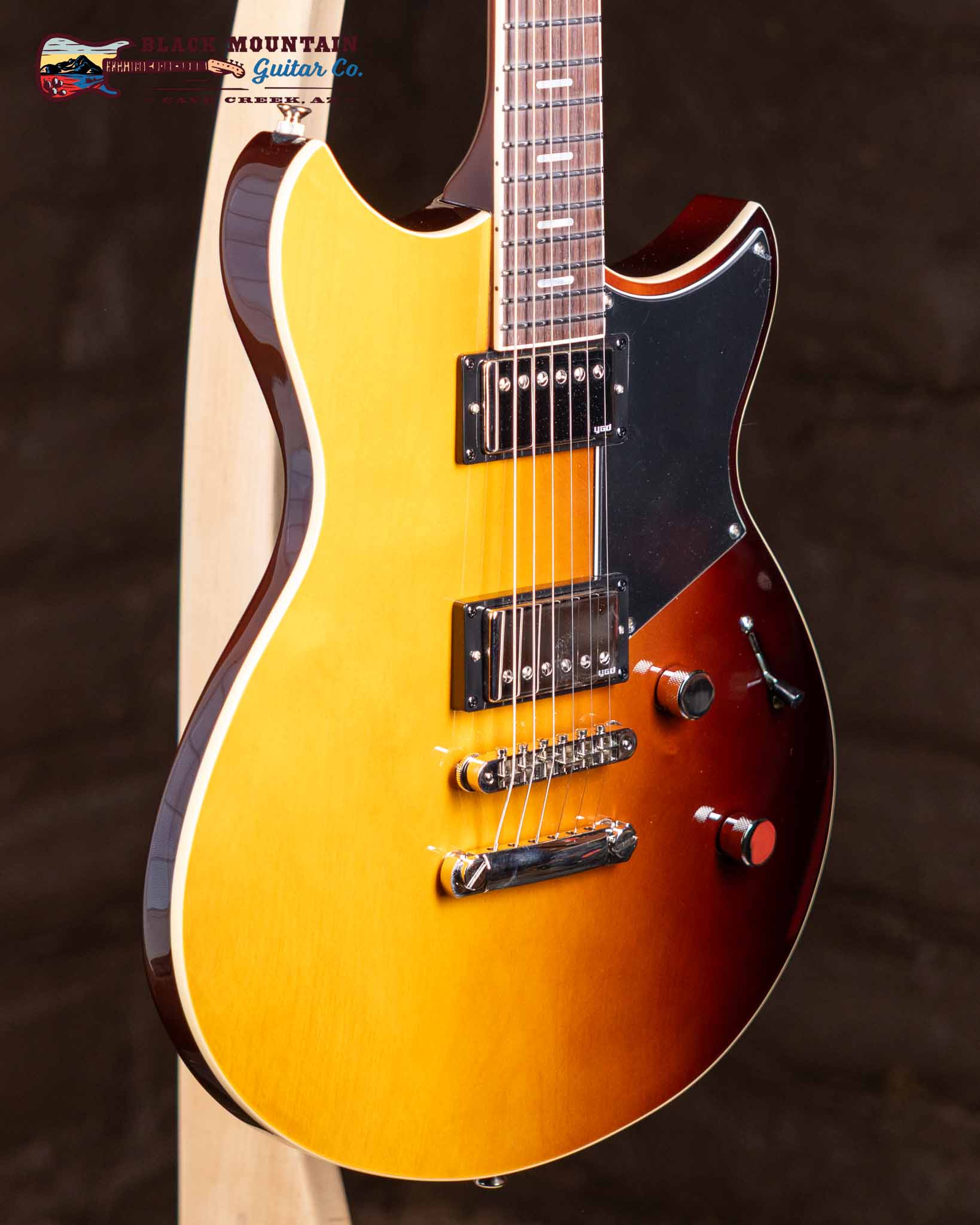

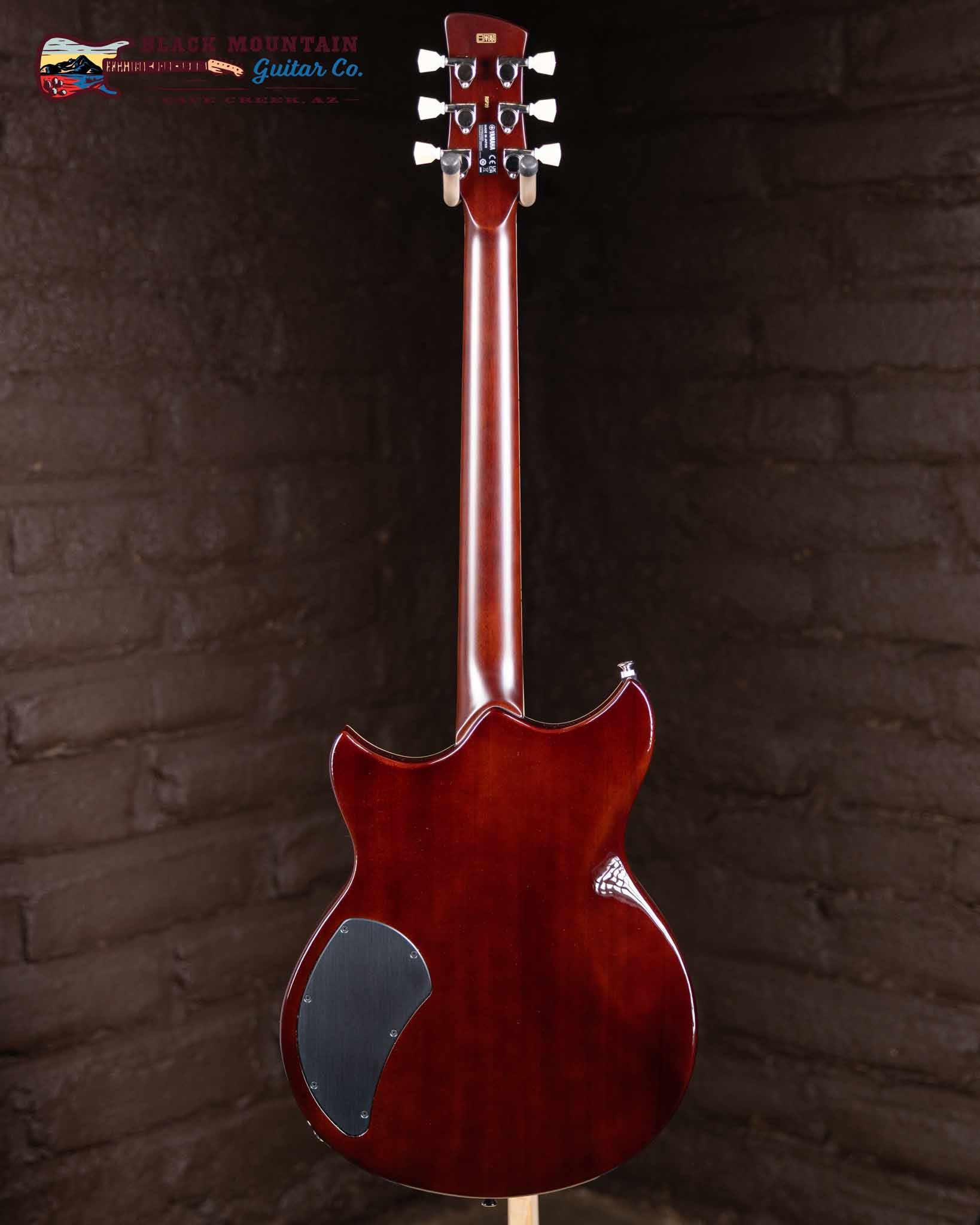

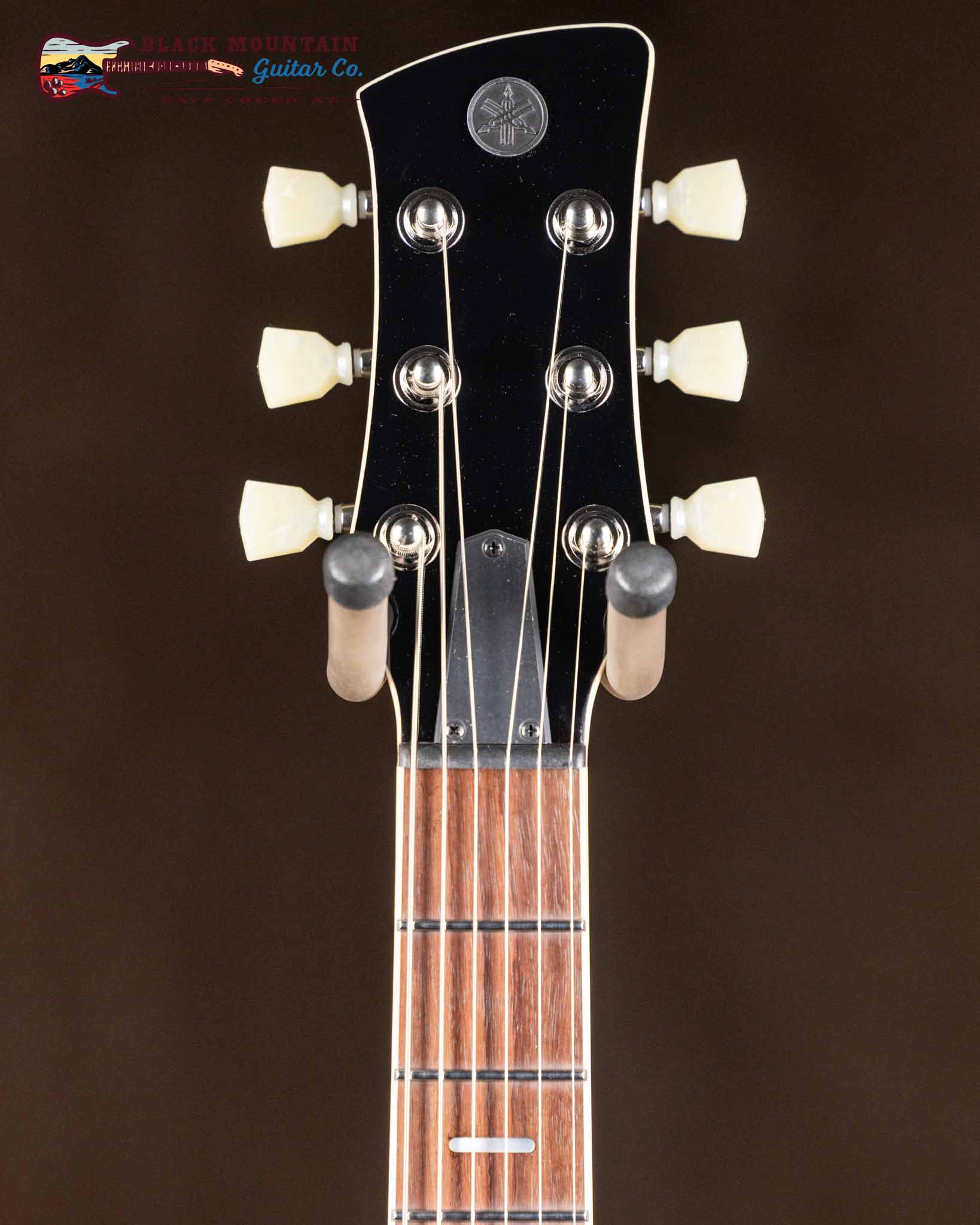

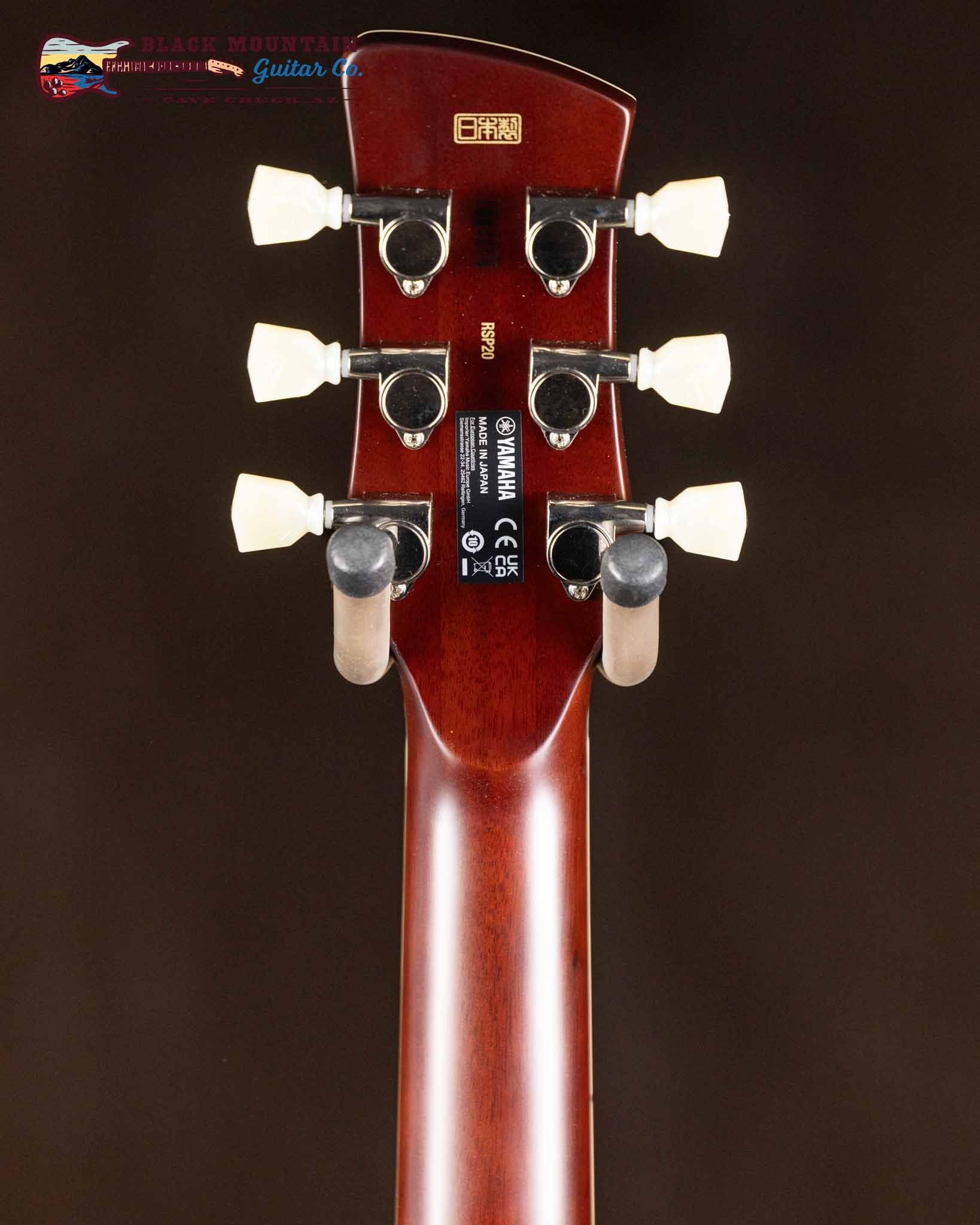

Yamaha RSP20 Revstar Professional - Sunset Burst (New)

The Japanese-made RSP20 features carbon reinforcement in the neck and chambered body, dual humbucking pickups, 5-way switching and a Focus Switch, providing exceptional versatility.

Serial #IMM227E

• Built in Japan
• 2 Café Racer-Inspired Finishes
• Chambered Maple and Mahogany Body
• Carbon-Reinforced Neck and Body
• 2 Humbucking Pickups
• 5-Position Pickup Selector
• Passive Focus Switch
• Hardshell Case Included

  GENERAL

  Construction	Set-In
  Scale Length	24-3/4” (628.6 mm)

  ---

  BODY

  Body Materials	Top: Maple / Back: Chambered 2-Piece Mahogany, Carbon Reinforcement
  Body Finish	Gloss Polyurethane

  ---

  NECK

  Neck Materials	3-Piece Mahogany, Carbon Reinforcement
  Neck Finish	Satin Polyurethane
  Fingerboard Materials	Rosewood
  Fingerboard Radius	12" (304.8 mm)
  Fret Wire	Jumbo Stainless Steel
  Number of Frets	22
  Nut Materials	PPS
  Neck Width @ 0 Fret / 12th Fret	41.9 / 52 mm
  Thickness @1st Fret / 12th Fret	21 / 23.9 mm

  ---

  ELECTRONICS

  Neck Pickup	VH5n: Humbucker / Alnico V
  Middle Pickup	-
  Bridge Pickup	VH5b: Humbucker / Alnico V
  Controls	Master Volume, Master Tone (Push-Pull "Focus Switch")
  Pickup Switch	5-Position Lever Switch

  ---

  HARDWARE

  Bridge	Tune-O-Matic
  Tremolo Arm	-
  String Spacing	10.5 mm
  Tailpiece	Stopbar
  Tuning Machines	Die-Cast
  Pickguard	Swift Blue/Moonlight Blue: 3-Ply Cream, Sunset Burst: 3 Ply Black

  ---

  OTHERS

  String Gauge	D'Addario EXL110 / 0.010-0.046
  Case	Hardshell Case
  Special Features	I.R.A. Treatment
