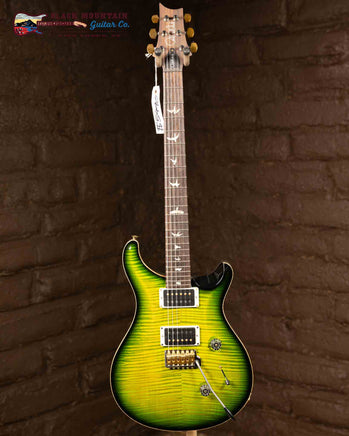

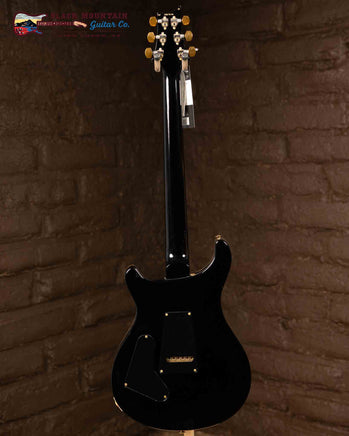

The Custom 24 is the quintessential PRS guitar. This iconic instrument was the first model that Paul Reed Smith brought to the public at PRS Guitars’ first Winter NAMM show in 1985 and has been a top seller ever since. Played by internationally touring artists, gigging musicians, and aspiring players, the Custom 24 features PRS’s patented Gen III tremolo system and PRS 85/15 pickups with volume and tone controls and a 5-way blade switch. 85/15 pickups were personally designed by Paul Reed Smith to offer remarkable clarity and extended high and low end.

The Custom 24 is the original PRS. Since its introduction, it has offered a unique tonal option for serious players and defined PRS tone and playability.

Serial #23  0367696

Weight: 7.4 Pound

PRS Patented Tremolo, Gen III

---

Meticulous design delivering sonic fidelity, player ergonomics, and revolutionary tuning stability.

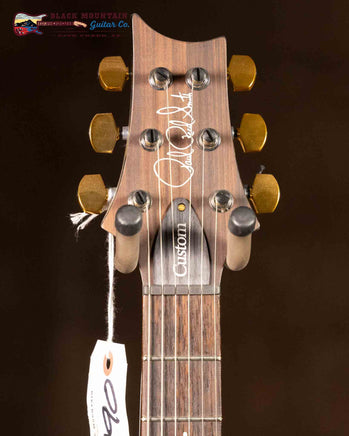

PRS Phase III Locking Tuners with Wing Buttons

---

Modern locking technology with vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.

PRS 85/15 Pickups

---

Uncovered pickups with remarkable clarity and extended high and low end, perfect for more modern applications.

SPECIFICATIONS

BODY
Body Construction	Solidbody
Top Wood	Maple
Back Wood	Mahogany
Top Carve	Violin

NECK
Number of Frets	24
Scale Length	25"
Neck Wood	Mahogany
Neck Construction	One-Piece
Truss Rod	PRS Double-Acting
Neck Shape	Pattern Thin
Neck Depth at the 1/2 Fret	53/64"
Neck Depth at the 12 1/2 Fret	57/64"
Neck Width at the Nut	1 11/16"
Neck Width at the Body	2 1/4"
Fretboard Wood	Rosewood
Fretboard Radius	10"
Fretboard Inlay	Birds
Headstock Logo	Signature, Inlaid

NECK/BODY ASSEMBLY
Neck/Body Assembly Type	Set

FINISH
Finish Type	High-Gloss Nitro

HARDWARE
Bridge	PRS Patented Tremolo, Gen III
Tuners	PRS Phase III Locking Tuners with Wing Buttons
Hardware Type	Nickel
Nut	PRS
Truss Rod Cover	"Custom"

ELECTRONICS
Treble Pickup	85/15
Bass Pickup	85/15
Controls	Volume and Tone Control with 5-Way Blade Pickup Switch

ADDITIONAL INFO
Strings	PRS Signature 10-46
Tuning	Standard (6 String): E, A, D, G, B, E
Case	Hardshell Case
Options	10 Top with Hybrid Hardware
